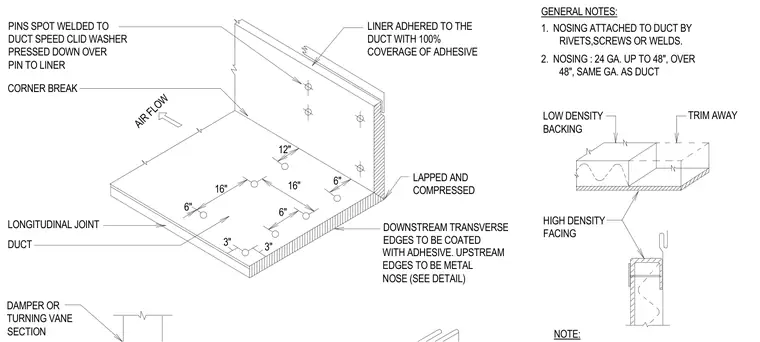

An acoustical duct liner is adhered to the interior of the sheet metal duct with one hundred percent coverage of adhesive. Mechanical fastener pins are spot welded to the duct with speed clip washers pressed down over the pins to secure the liner. Longitudinal joints feature lapped and compressed edges with low and high density backing configurations. Downstream transverse edges are coated with adhesive while upstream edges utilize a twenty-four gauge metal nosing attached by rivets, screws, or welds.
DUCT WITH 100% COVERAGE OF ADHESIVE LINER ADHERED TO THE TURNING VANE SECTION DAMPER OR PINS SPOT WELDED TO DUCT SPEED CLID WASHER PRESSED DOWN OVER LONGITUDINAL JOINT DUCT CORNER BREAK PIN TO LINER 3" 6" 16" AIR FLOW 16" 6" 3" 6" 12" NOSE (SEE DETAIL) NOTE: 1. NOSING ATTACHED TO DUCT BY RIVETS,SCREWS OR WELDS. 48", SAME GA. AS DUCT 2. NOSING : 24 GA. UP TO 48", OVER DOWNSTREAM TRANSVERSE WITH ADHESIVE. UPSTREAM EDGES TO BE METAL EDGES TO BE COATED COMPRESSED LAPPED AND FACING HIGH DENSITY LOW DENSITY BACKING GENERAL NOTES: TRIM AWAY
