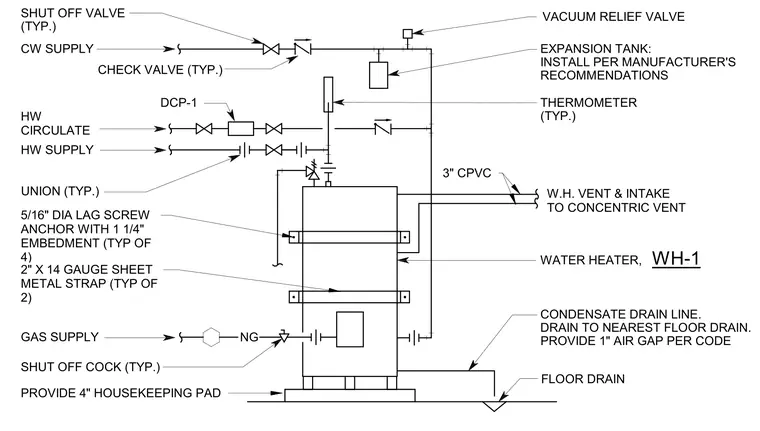

The water heater rests on a four-inch concrete housekeeping pad and is secured with two two-inch by fourteen-gauge sheet metal straps anchored using four five-sixteenth-inch diameter lag screw anchors with one-and-one-quarter-inch embedment. Cold water supply piping includes a typical shut-off valve, check valve, expansion tank installed per manufacturer recommendations, vacuum relief valve, and thermometer. Hot water supply and recirculation lines incorporate typical unions and shut-off valves. Natural gas supply feeds the unit through a typical shut-off cock. Venting and intake utilize three-inch chlorinated polyvinyl chloride piping connected to a concentric vent. A condensate drain line runs to the nearest floor drain with a one-inch air gap provided per code.
INSTALL PER MANUFACTURER'S THERMOMETER (TYP.) RECOMMENDATIONS WATER HEATER, SHUT OFF COCK (TYP.) GAS SUPPLY NG HW SUPPLY CHECK VALVE (TYP.) SHUT OFF VALVE (TYP.) EXPANSION TANK: VACUUM RELIEF VALVE UNION (TYP.) CW SUPPLY DRAIN TO NEAREST FLOOR DRAIN. CONDENSATE DRAIN LINE. WH-1 HW CIRCULATE DCP-1 FLOOR DRAIN PROVIDE 4" HOUSEKEEPING PAD PROVIDE 1" AIR GAP PER CODE 5/16" DIA LAG SCREW ANCHOR WITH 1 1/4" EMBEDMENT (TYP OF 4) 2" X 14 GAUGE SHEET METAL STRAP (TYP OF 2) W.H. VENT & INTAKE TO CONCENTRIC VENT 3" CPVC
