Mechanical · M-4M8TQ

Suspended Pipe Clamp Support with Structural Angle and Expansion Anchors

Materials

anchor

Elements

Floors / Slabs Anchors / Embeds

Connections

Embed Plate

About this detail

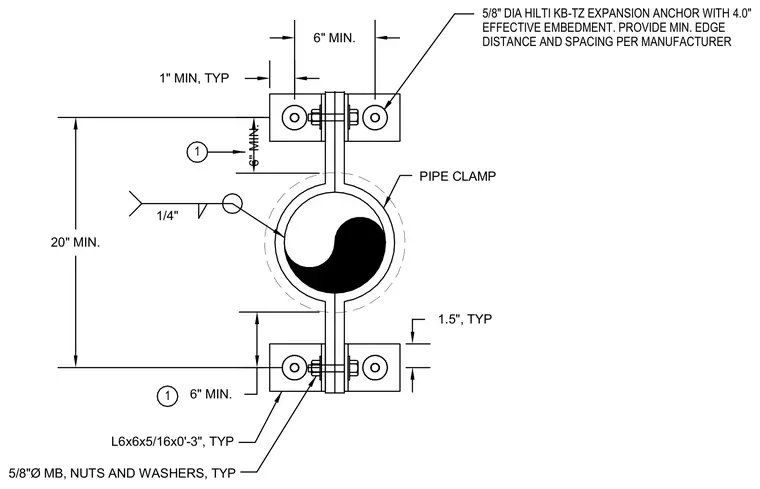

A pipe clamp secures the suspended utility line and connects to two opposing structural angle brackets fabricated from L6x6x5/16 by three inches long. Each angle bracket fastens to the supporting concrete surface using 5/8-inch diameter Hilti KB-TZ expansion anchors with a 4.0-inch effective embedment, maintaining specified minimum edge distances and spacings. The vertical drop distance measures twenty inches minimum between anchor locations, with a six-inch minimum clearance maintained around the clamp assembly. The pipe clamp is secured using 5/8-inch diameter machine bolts complete with nuts and washers, and a quarter-inch fillet weld joins the clamp components as indicated.
