Rectangular duct risers pass vertically through a shaft opening framed by shaft walls with clear inner dimensions provided by others. Structural steel support members span across the shaft opening to carry the duct load. Fasteners are installed typically to secure the duct to the steel supports as required. Attachment of the steel supports to the structure follows the seismic anchorage submittal, including minimum edge distance requirements.

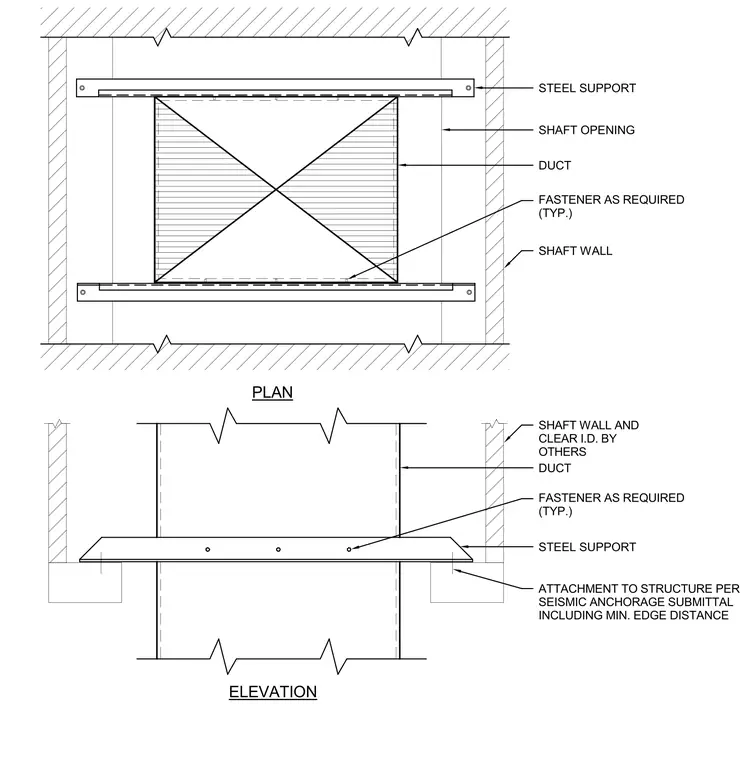

FASTENER AS REQUIRED (TYP.) DUCT STEEL SUPPORT ATTACHMENT TO STRUCTURE PER SEISMIC ANCHORAGE SUBMITTAL INCLUDING MIN. EDGE DISTANCE SHAFT WALL AND CLEAR I.D. BY OTHERS SHAFT WALL SHAFT OPENING FASTENER AS REQUIRED (TYP.) DUCT STEEL SUPPORT ELEVATION PLAN
