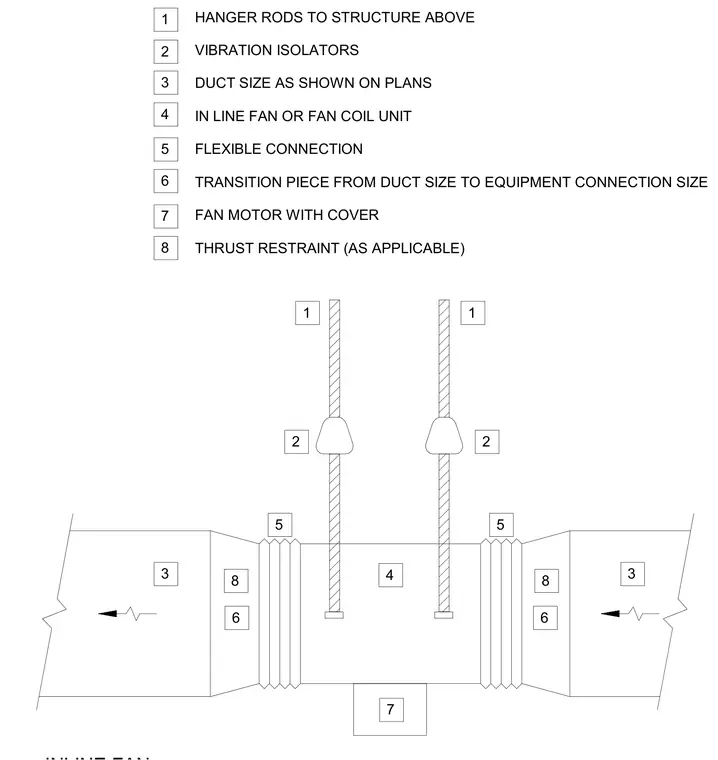

An inline fan or fan coil unit is suspended from the structure above using hanger rods equipped with vibration isolators. Flexible connections and transition pieces link the equipment connection size to the main duct size as shown on plans. Thrust restraints are included as applicable. The fan motor is fitted with a cover.
HANGER RODS TO STRUCTURE ABOVE VIBRATION ISOLATORS DUCT SIZE AS SHOWN ON PLANS IN LINE FAN OR FAN COIL UNIT FLEXIBLE CONNECTION TRANSITION PIECE FROM DUCT SIZE TO EQUIPMENT CONNECTION SIZE FAN MOTOR WITH COVER THRUST RESTRAINT (AS APPLICABLE) 1 2 3 4 5 6 7 8 1 1 2 2 3 3 5 5 8 8 7 4 6 6
