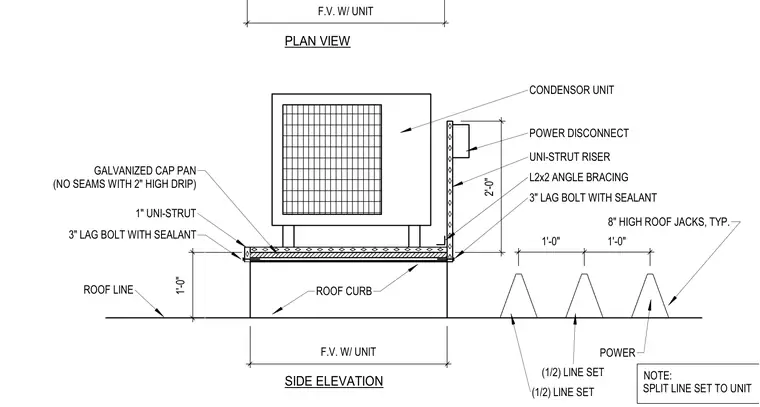

A rooftop condenser unit rests on a roof curb mounted above the roof line. A galvanized cap pan with no seams and a two-inch high drip covers the curb assembly and secures with one-inch unistrut and three-inch lag bolts with sealant. An unistrut riser supports a power disconnect and uses L2x2 angle bracing anchored with three-inch lag bolts and sealant. Eight-inch high roof jacks sit adjacent to the curb assembly while line sets route power to the unit.
1'-0" 1'-0" 2'-0" 1'-0" F.V. W/ UNIT ROOF CURB SIDE ELEVATION PLAN VIEW CONDENSOR UNIT POWER DISCONNECT UNI-STRUT RISER L2x2 ANGLE BRACING 3" LAG BOLT WITH SEALANT 8" HIGH ROOF JACKS, TYP. ROOF LINE 3" LAG BOLT WITH SEALANT 1" UNI-STRUT GALVANIZED CAP PAN (NO SEAMS WITH 2" HIGH DRIP) (1/2) LINE SET (1/2) LINE SET POWER F.V. W/ UNIT NOTE: SPLIT LINE SET TO UNIT
