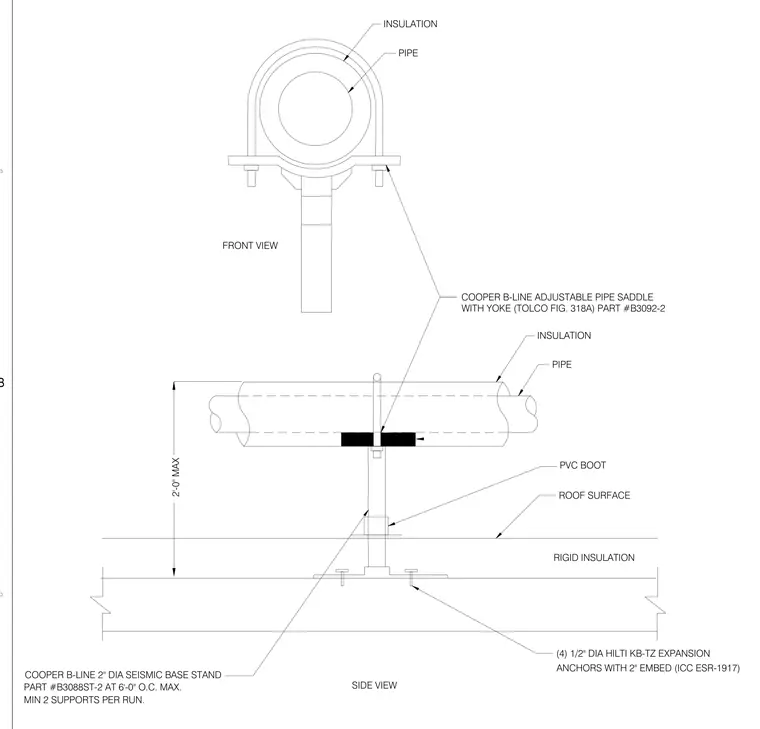

An insulated pipe is supported by a Cooper B-line adjustable pipe saddle with yoke and a two-inch diameter seismic base stand secured to the roof surface. Four half-inch diameter Hilti KB-TZ expansion anchors with a two-inch embedment anchor the base stand to the substrate through rigid insulation. A polyvinyl chloride boot protects the roof penetration around the stand. The base stand is spaced at a maximum of six feet on center with a minimum of two supports per run.
PVC BOOT PIPE INSULATION 2'-0" MAX ROOF SURFACE RIGID INSULATION (4) 1/2" DIA HILTI KB-TZ EXPANSION COOPER B-LINE ADJUSTABLE PIPE SADDLE WITH YOKE (TOLCO FIG. 318A) PART #B3092-2 COOPER B-LINE 2" DIA SEISMIC BASE STAND PART #B3088ST-2 AT 6'-0" O.C. MAX. MIN 2 SUPPORTS PER RUN. ANCHORS WITH 2" EMBED (ICC ESR-1917) PIPE INSULATION SIDE VIEW FRONT VIEW □ B □
