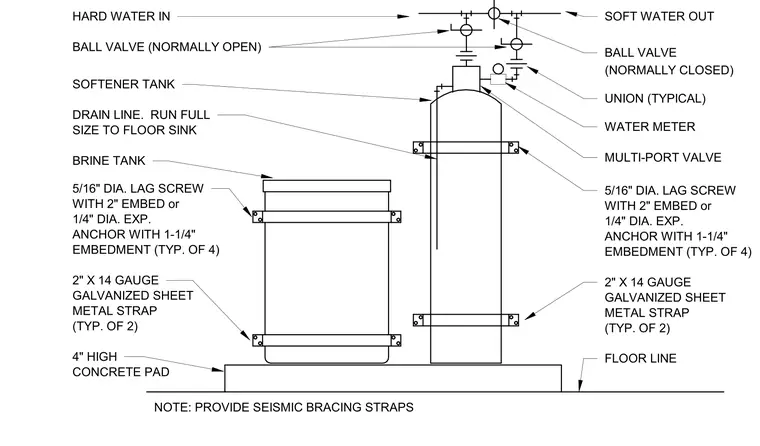

The water softener tank and brine tank rest on a four inch high concrete pad above the floor line. The softener tank connects to hard water in and soft water out lines featuring ball valves, unions, a water meter, a multi-port valve, and a drain line running full size to a floor sink. Two inch by fourteen gauge galvanized sheet metal straps provide seismic bracing anchored with five-sixteenth inch diameter lag screws with two inch embedment or one-quarter inch diameter expansion anchors with one and one-quarter inch embedment, typical of four per tank.
HARD WATER IN BALL VALVE (NORMALLY OPEN) SOFTENER TANK DRAIN LINE. RUN FULL SIZE TO FLOOR SINK BRINE TANK SOFT WATER OUT BALL VALVE UNION (TYPICAL) WATER METER MULTI-PORT VALVE FLOOR LINE (NORMALLY CLOSED) WITH 2" EMBED or 1/4" DIA. EXP. EMBEDMENT (TYP. OF 4) 2" X 14 GAUGE GALVANIZED SHEET 5/16" DIA. LAG SCREW ANCHOR WITH 1-1/4" (TYP. OF 2) METAL STRAP WITH 2" EMBED or 1/4" DIA. EXP. EMBEDMENT (TYP. OF 4) 2" X 14 GAUGE GALVANIZED SHEET 5/16" DIA. LAG SCREW ANCHOR WITH 1-1/4" (TYP. OF 2) METAL STRAP 4" HIGH CONCRETE PAD NOTE: PROVIDE SEISMIC BRACING STRAPS
