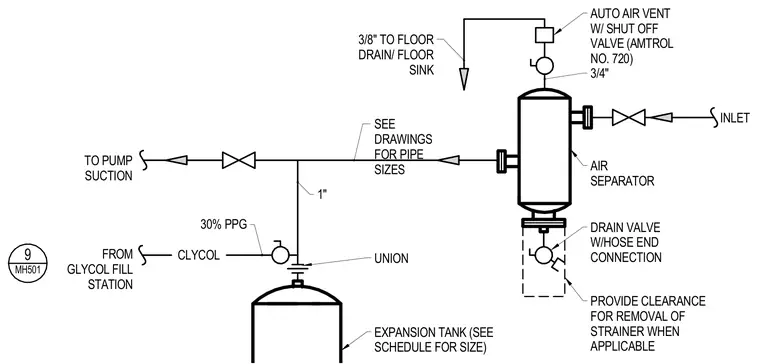

An air separator connects to the system inlet and routes flow toward the pump suction with pipe sizes determined per drawings. An automatic air vent with a shut-off valve is mounted at the top of the separator, with a three-eighths-inch drain line routing to a floor drain or floor sink. A drain valve with a hose end connection is installed at the bottom of the separator, maintaining required clearance for strainer removal. An expansion tank connects to the main line through a union, supplied by a glycol fill station using thirty percent polypropylene glycol and featuring a one-inch branch line.
9 MH501 CLYCOL INLET 1" 30% PPG AUTO AIR VENT W/ SHUT OFF VALVE (AMTROL NO. 720) AIR SEPARATOR DRAIN VALVE W/HOSE END CONNECTION PROVIDE CLEARANCE FOR REMOVAL OF STRAINER WHEN APPLICABLE EXPANSION TANK (SEE SCHEDULE FOR SIZE) FROM GLYCOL FILL STATION TO PUMP SUCTION SEE DRAWINGS FOR PIPE SIZES 3/8" TO FLOOR DRAIN/ FLOOR SINK UNION 3/4"
