Mechanical · M-4CYKQ

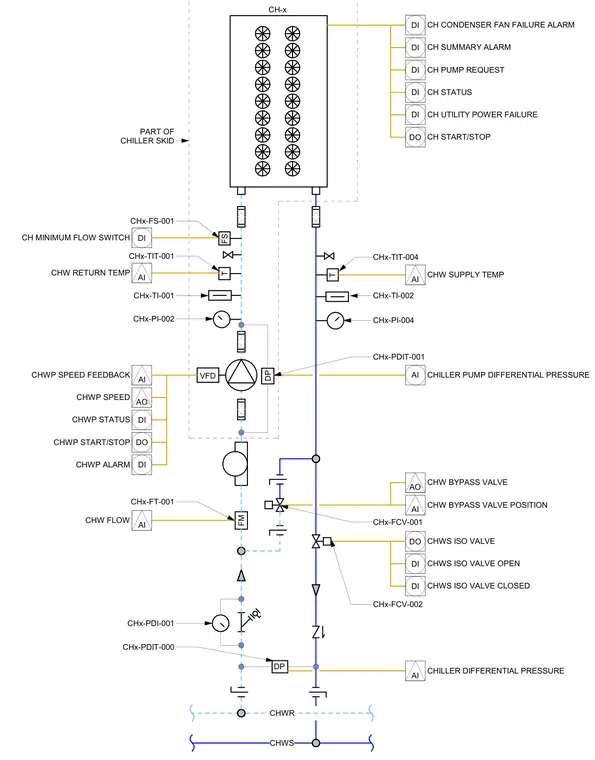

Chiller P&I Diagram

About this detail

A chiller skid configuration complete with chilled water supply and return lines, pumps, and associated control instrumentation. Digital and analog inputs and outputs connect to monitoring points including chilled water flow, return and supply temperatures, differential pressure, and minimum flow switches. Motorized isolation valves and bypass valves regulate flow, while temperature indicators, pressure gauges, and flow meters provide system diagnostics. Variable frequency drives control the chilled water pumps alongside status and alarm feedback points. The diagram maps out the complete control and fluid routing logic for the packaged chiller unit.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
