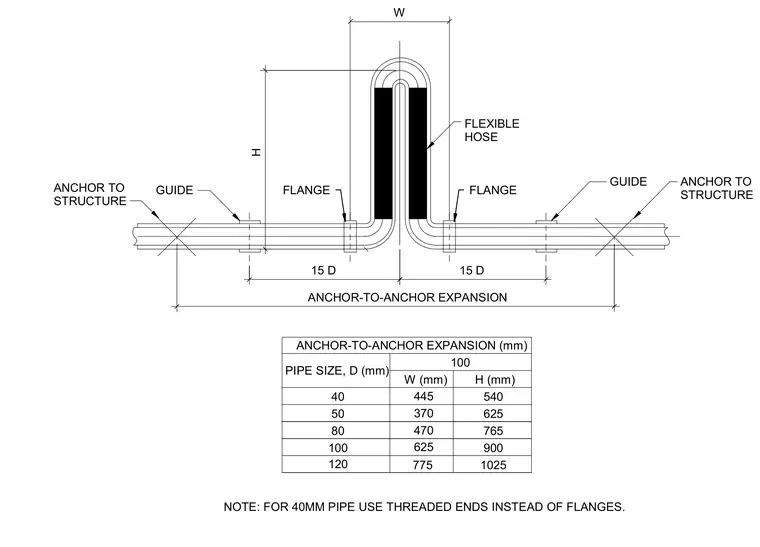

A flexible hose expansion loop integrates associated structural guides, anchors, and flange connections. The flexible hose layout incorporates specified width and height dimensions relative to pipe size D, with anchor-to-anchor expansion spacing set at fifteen times the pipe diameter on each side. Pipe sizes of 40 millimeters utilize threaded ends instead of flanges, while larger sizes connect via flanges. Pipe sizes ranging from 40 millimeters to 120 millimeters correspond to specific width and height configurations detailed in the accompanying schedule.
ANCHOR TO STRUCTURE ANCHOR TO STRUCTURE GUIDE GUIDE ANCHOR-TO-ANCHOR EXPANSION (mm) PIPE SIZE, D (mm) 100 W (mm) H (mm) FLEXIBLE HOSE 15 D 15 D ANCHOR-TO-ANCHOR EXPANSION W H 120 80 100 625 470 775 1025 900 765 FLANGE FLANGE 40 50 370 625 445 540 NOTE: FOR 40MM PIPE USE THREADED ENDS INSTEAD OF FLANGES.
