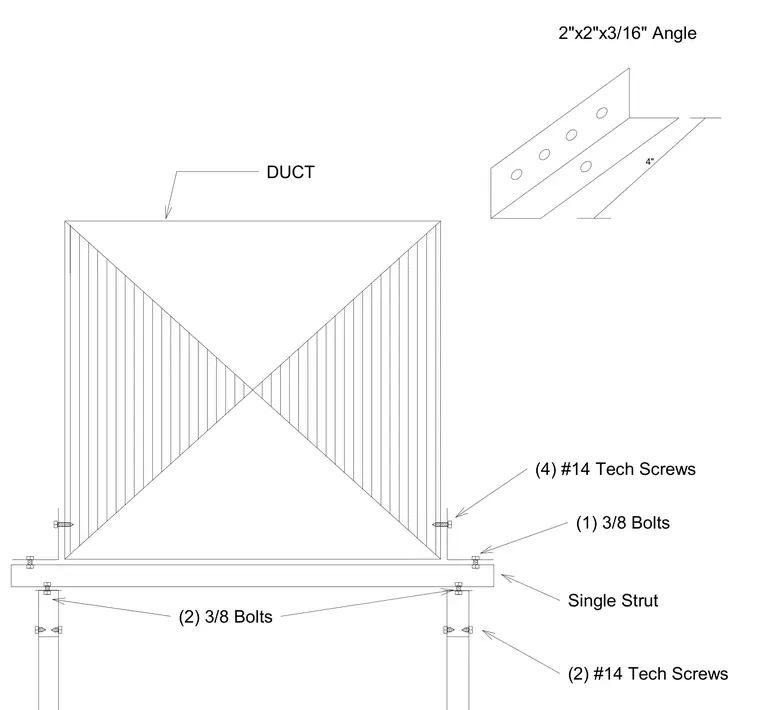

An HVAC duct rests on a single strut member supported by vertical framing elements. The connection utilizes two 3/8-inch bolts securing the strut to the lower supports, while four #14 self-drilling tech screws fasten the duct to the angle brackets. A 2x2x3/16-inch angle with a length of 4 inches provides additional lateral support secured by one 3/8-inch bolt.
DUCT (2) #14 Tech Screws (2) 3/8 Bolts Single Strut (1) 3/8 Bolts (4) #14 Tech Screws 4" 2"x2"x3/16" Angle
