Mechanical · M-49ZH9

Plate and Frame Heat Exchanger Piping Detail

Materials

Elements

About this detail

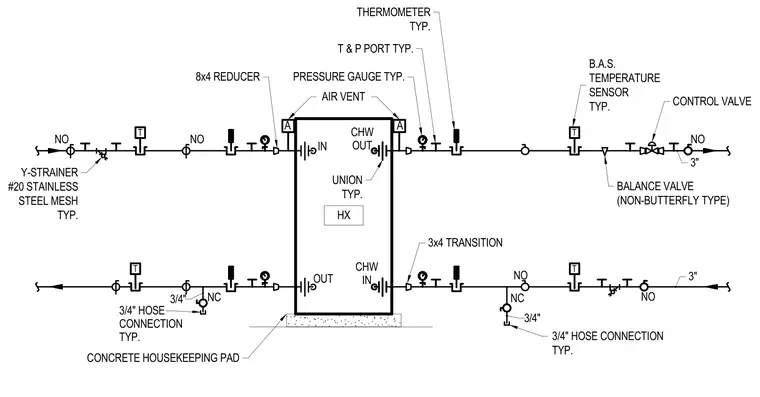

A plate and frame heat exchanger is mounted on a three-inch concrete housekeeping pad with chilled water supply and return piping tied in via unions. The piping layout incorporates Y-strainers with number twenty stainless steel mesh, pressure gauges, temperature and pressure ports, thermometers, air vents, building automation system temperature sensors, control valves, non-butterfly type balance valves, and three-inch hose connections.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
