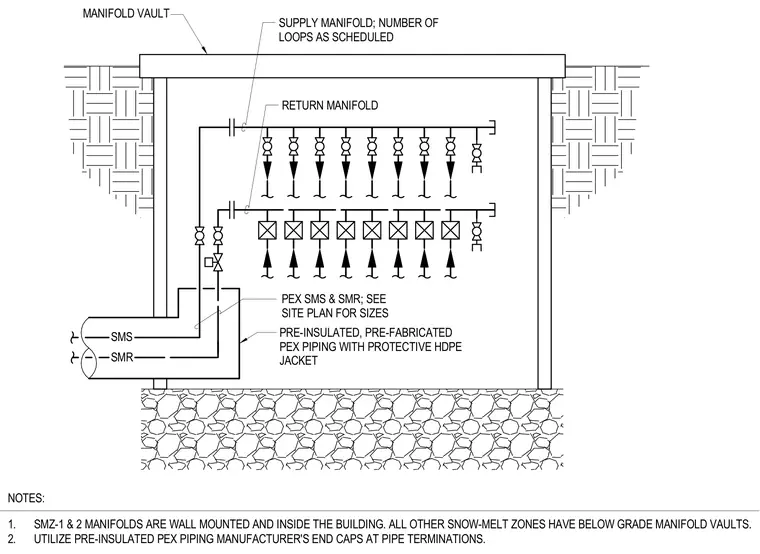

Below-grade manifold vault housing supply and return manifolds connected to pre-insulated, pre-fabricated PEX piping with a protective high-density polyethylene jacket. The number of loops is scheduled per project requirements. Snow melt supply and return lines enter the vault from underground piping. Pre-insulated PEX piping manufacturer end caps are utilized at pipe terminations.
SUPPLY MANIFOLD; NUMBER OF LOOPS AS SCHEDULED RETURN MANIFOLD PRE-INSULATED, PRE-FABRICATED PEX PIPING WITH PROTECTIVE HDPE JACKET MANIFOLD VAULT PEX SMS & SMR; SEE SITE PLAN FOR SIZES SMS SMR NOTES: 1. SMZ-1 & 2 MANIFOLDS ARE WALL MOUNTED AND INSIDE THE BUILDING. ALL OTHER SNOW-MELT ZONES HAVE BELOW GRADE MANIFOLD VAULTS. 2. UTILIZE PRE-INSULATED PEX PIPING MANUFACTURER'S END CAPS AT PIPE TERMINATIONS.
