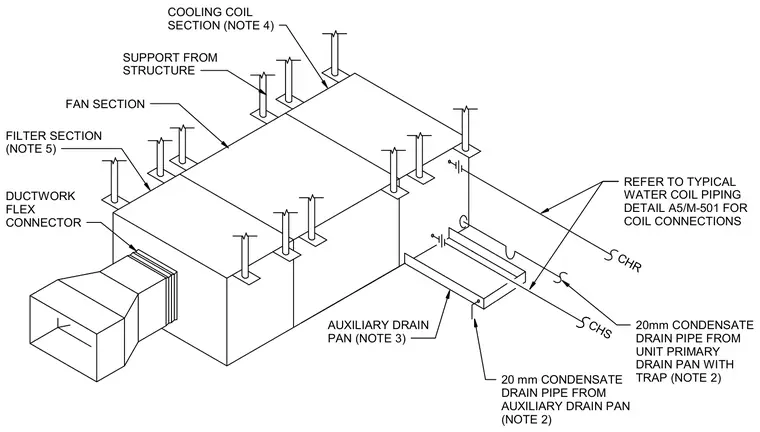

An air handling unit is suspended from the overhead structure using threaded rod supports across the filter, fan, and cooling coil sections. A flexible duct connector attaches to the discharge side of the unit. A twenty millimeter condensate drain pipe with a trap runs from the unit primary drain pan, accompanied by a twenty millimeter condensate drain pipe from the auxiliary drain pan positioned beneath the unit. Chilled water supply and return piping connects to the cooling coil section.
CHS CHR 20 mm CONDENSATE DRAIN PIPE FROM AUXILIARY DRAIN PAN (NOTE 2) DUCTWORK FLEX CONNECTOR REFER TO TYPICAL WATER COIL PIPING DETAIL A5/M-501 FOR COIL CONNECTIONS 20mm CONDENSATE DRAIN PIPE FROM UNIT PRIMARY DRAIN PAN WITH TRAP (NOTE 2) SUPPORT FROM STRUCTURE FAN SECTION FILTER SECTION (NOTE 5) AUXILIARY DRAIN PAN (NOTE 3) COOLING COIL SECTION (NOTE 4)
