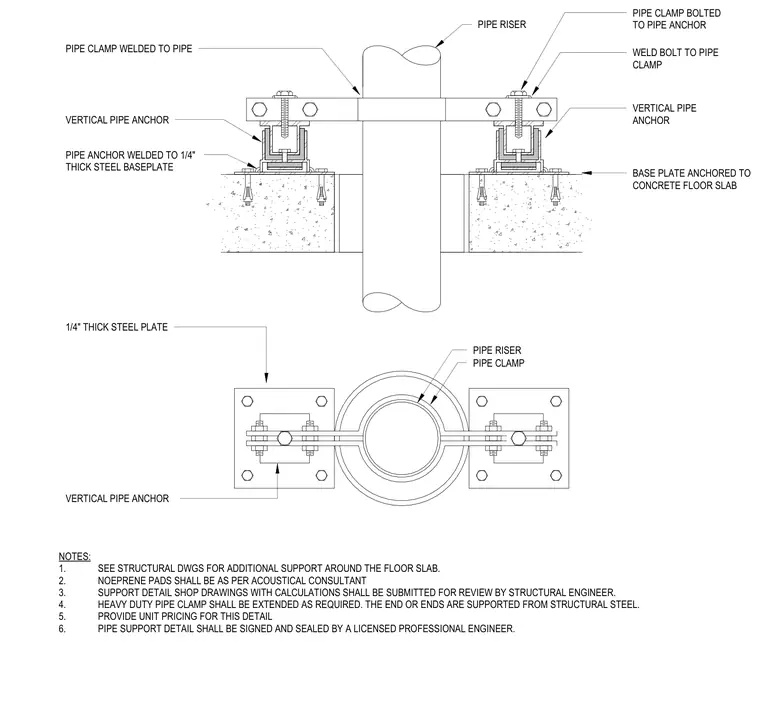

A vertical pipe anchor assembly secures a central pipe riser passing through a concrete floor slab. A heavy-duty pipe clamp is clamped around the pipe riser and bolted to vertical pipe anchors on each side. Each vertical pipe anchor is welded to a one-quarter-inch thick steel base plate, which is anchored directly to the concrete floor slab. Neoprene pads are provided as per the acoustical consultant, and additional structural support is coordinated per structural drawings.
NOTES: 1. SEE STRUCTURAL DWGS FOR ADDITIONAL SUPPORT AROUND THE FLOOR SLAB. 2. NOEPRENE PADS SHALL BE AS PER ACOUSTICAL CONSULTANT 3. SUPPORT DETAIL SHOP DRAWINGS WITH CALCULATIONS SHALL BE SUBMITTED FOR REVIEW BY STRUCTURAL ENGINEER. 4. HEAVY DUTY PIPE CLAMP SHALL BE EXTENDED AS REQUIRED. THE END OR ENDS ARE SUPPORTED FROM STRUCTURAL STEEL. 5. PROVIDE UNIT PRICING FOR THIS DETAIL 6. PIPE SUPPORT DETAIL SHALL BE SIGNED AND SEALED BY A LICENSED PROFESSIONAL ENGINEER. PIPE CLAMP WELDED TO PIPE VERTICAL PIPE ANCHOR PIPE ANCHOR WELDED TO 1/4" THICK STEEL BASEPLATE PIPE CLAMP BOLTED TO PIPE ANCHOR PIPE RISER PIPE CLAMP 1/4" THICK STEEL PLATE PIPE RISER VERTICAL PIPE ANCHOR BASE PLATE ANCHORED TO CONCRETE FLOOR SLAB VERTICAL PIPE ANCHOR WELD BOLT TO PIPE CLAMP
