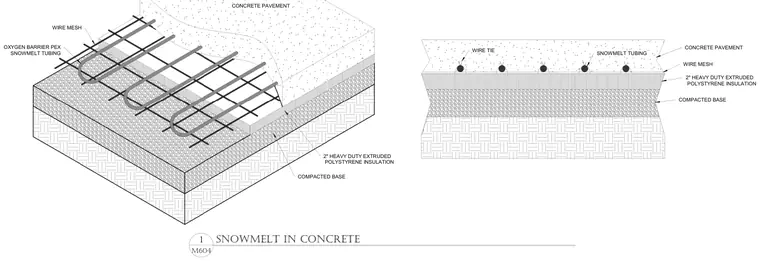

The subbase consists of a compacted base supporting a layer of two-inch heavy-duty extruded polystyrene insulation. Oxygen-barrier PEX snowmelt tubing is secured to wire mesh using wire ties. Concrete pavement is cast over the insulation and tubing assembly, embedding the heating loops.
COMPACTED BASE 2" HEAVY DUTY EXTRUDED POLYSTYRENE INSULATION CONCRETE PAVEMENT WIRE MESH SNOWMELT TUBING WIRE TIE COMPACTED BASE 2" HEAVY DUTY EXTRUDED POLYSTYRENE INSULATION WIRE MESH OXYGEN BARRIER PEX CONCRETE PAVEMENT SNOWMELT TUBING M604 1 SNOWMELT IN CONCRETE
