Mechanical · M-3PCV7

Hot Water Unit Heater Piping

Elements

About this detail

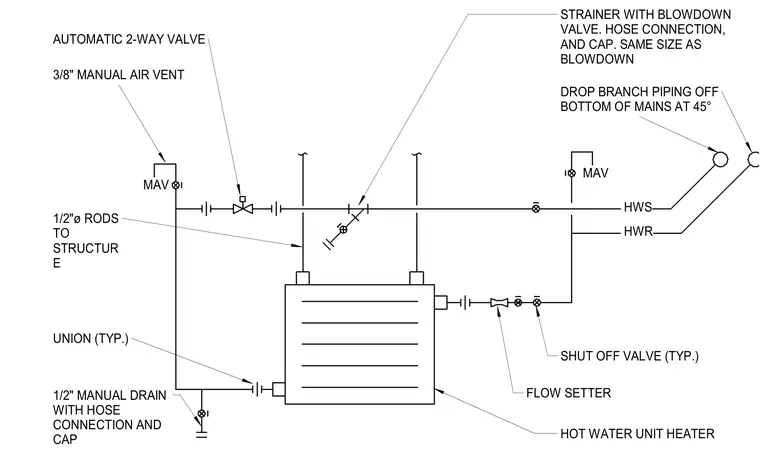

Hot water unit heater piping assembly suspended from the structure using half-inch diameter rods. Branch piping drops off the bottom of mains at a forty-five degree angle connecting to hot water supply and hot water return lines. The supply line features a strainer with blowdown valve, hose connection, and cap, followed by a manual air vent, an automatic two-way valve, and unions typically installed at connections. Shut-off valves isolate the flow setter on the return line. A manual drain with hose connection and cap is provided at the bottom of the circuit.
