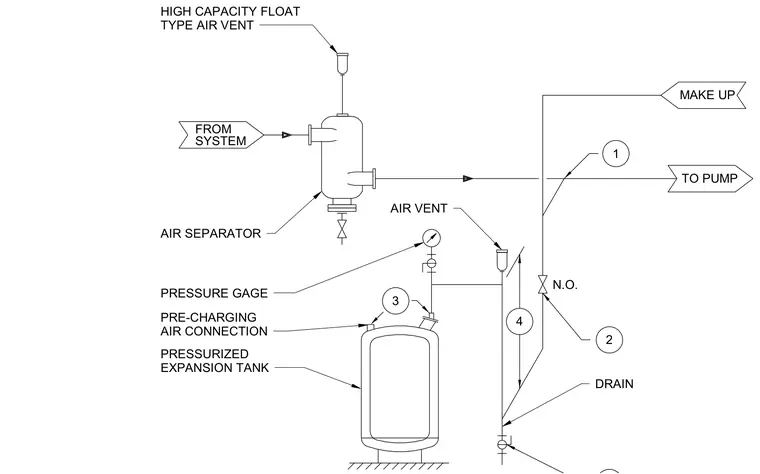

A vertical pressurized expansion tank connects to an air separator with a high-capacity float-type air vent mounted on top. The system receives flow from the system and routes water to the pump while incorporating a pressure gauge and a pre-charging air connection. Additional components include an air vent, a drain line, and a make-up water line equipped with a normally open valve.
1 2 3 4 MAKE UP FROM SYSTEM TO PUMP N.O. DRAIN AIR VENT HIGH CAPACITY FLOAT TYPE AIR VENT AIR SEPARATOR PRESSURE GAGE PRE-CHARGING AIR CONNECTION PRESSURIZED EXPANSION TANK
