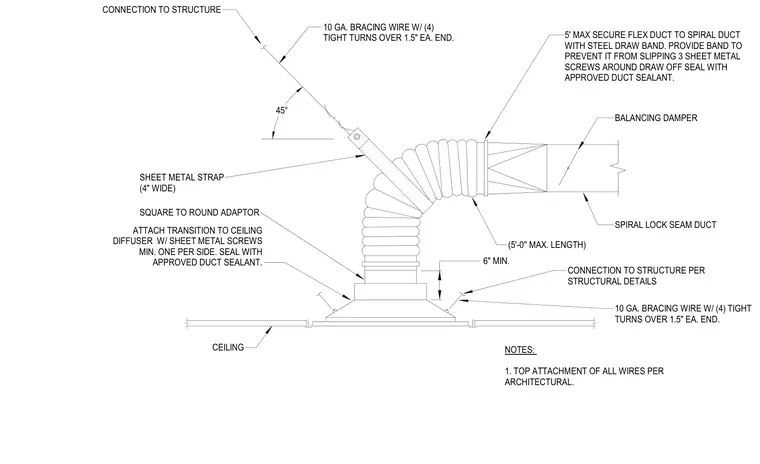

A spiral lock seam duct connects to a ceiling diffuser through a flexible duct run of five feet maximum length, secured by a steel draw band and three sheet metal screws around the draw off, with all joints sealed using approved duct sealant. A balancing damper is installed within the duct run, maintaining a minimum distance of six inches from the transition. A square to round adaptor attaches to the ceiling diffuser using a minimum of one sheet metal screw per side and approved duct sealant. Ten-gauge bracing wires with four tight turns over one and a half inches at each end provide seismic support at a forty-five degree angle via four-inch wide sheet metal straps and structural connections.
SQUARE TO ROUND ADAPTOR SHEET METAL STRAP (4" WIDE) CEILING SPIRAL LOCK SEAM DUCT BALANCING DAMPER 6" MIN. (5'-0'' MAX. LENGTH) 10 GA. BRACING WIRE W/ (4) TIGHT TURNS OVER 1.5" EA. END. 45° 10 GA. BRACING WIRE W/ (4) TIGHT TURNS OVER 1.5" EA. END. ATTACH TRANSITION TO CEILING DIFFUSER W/ SHEET METAL SCREWS MIN. ONE PER SIDE. SEAL WITH APPROVED DUCT SEALANT. 5' MAX SECURE FLEX DUCT TO SPIRAL DUCT WITH STEEL DRAW BAND. PROVIDE BAND TO PREVENT IT FROM SLIPPING 3 SHEET METAL SCREWS AROUND DRAW OFF SEAL WITH APPROVED DUCT SEALANT. NOTES: 1. TOP ATTACHMENT OF ALL WIRES PER ARCHITECTURAL. CONNECTION TO STRUCTURE CONNECTION TO STRUCTURE PER STRUCTURAL DETAILS
