Mechanical · M-3MZMV

Single Duct Terminal Unit

Materials

Elements

Doors Ceilings Insulation Connections / Plates

About this detail

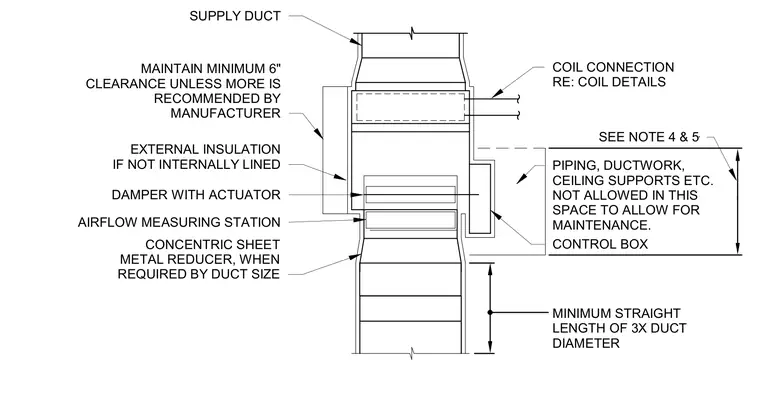

A single duct terminal unit connects to the supply duct and incorporates a damper with an actuator alongside an airflow measuring station. External insulation is applied if the unit is not internally lined. A concentric sheet metal reducer is installed when required by the duct size, maintaining a minimum straight length of three times the duct diameter. A control box is mounted with a minimum six-inch clearance, and piping, ductwork, and ceiling supports are restricted from this space to allow for ongoing maintenance access.
