The shot feeder is mounted on a 4-inch thick concrete pad measuring 16 inches by 16 inches and features a twist-off pressure cap with a 3 1/2-inch minimum opening. Piping connections include 3-inch diameter lines routed to pump suction and discharge equipped with 3/4-inch ball valves and plugged crosses. A 1/2-inch diameter hose bib is tied into the lower piping assembly.

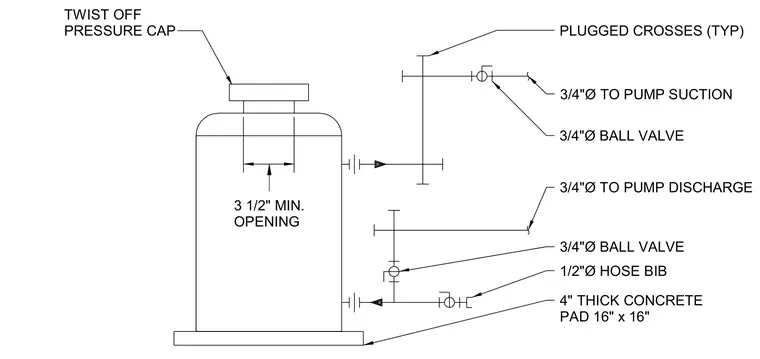

TWIST OFF PRESSURE CAP 3/4"Ø TO PUMP SUCTION 3/4"Ø BALL VALVE PLUGGED CROSSES (TYP) 3/4"Ø TO PUMP DISCHARGE 3/4"Ø BALL VALVE 1/2"Ø HOSE BIB 4" THICK CONCRETE PAD 16" x 16" 3 1/2" MIN. OPENING
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
