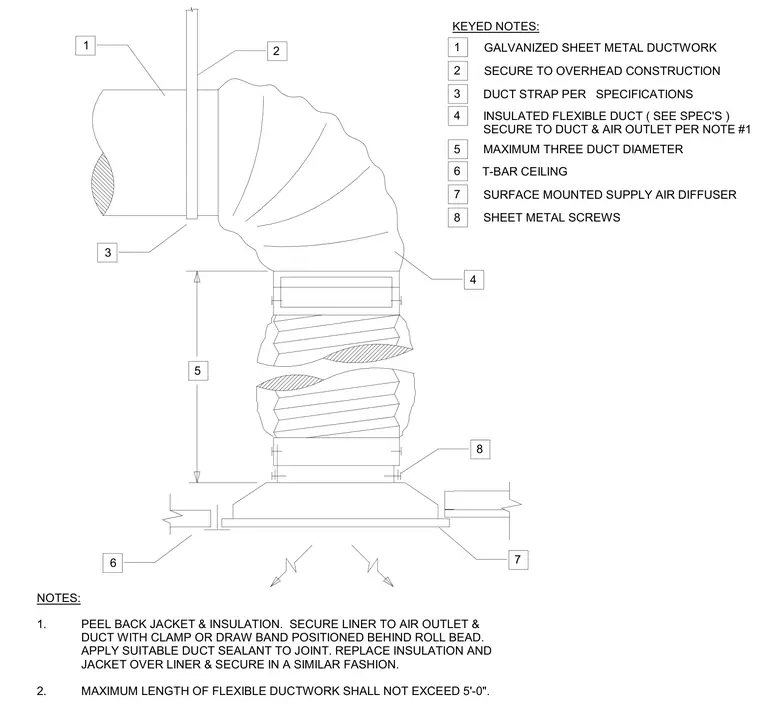

An insulated flexible duct connects a galvanized sheet metal duct to a surface mounted supply air diffuser set in a T-bar ceiling. The duct is secured to overhead construction using a duct strap per specifications, while the flexible duct length is restricted to a maximum of five feet and three duct diameters. The inner liner is clamped behind the roll bead, sealed with duct sealant, and covered by the insulation jacket secured with sheet metal screws.
2 SECURE TO OVERHEAD CONSTRUCTION 3 DUCT STRAP PER SPECIFICATIONS 4 INSULATED FLEXIBLE DUCT ( SEE SPEC'S ) SECURE TO DUCT & AIR OUTLET PER NOTE #1 5 6 MAXIMUM THREE DUCT DIAMETER T-BAR CEILING 7 SURFACE MOUNTED SUPPLY AIR DIFFUSER GALVANIZED SHEET METAL DUCTWORK 1 8 SHEET METAL SCREWS NOTES: 1. PEEL BACK JACKET & INSULATION. SECURE LINER TO AIR OUTLET & DUCT WITH CLAMP OR DRAW BAND POSITIONED BEHIND ROLL BEAD. APPLY SUITABLE DUCT SEALANT TO JOINT. REPLACE INSULATION AND JACKET OVER LINER & SECURE IN A SIMILAR FASHION. 2. MAXIMUM LENGTH OF FLEXIBLE DUCTWORK SHALL NOT EXCEED 5'-0". 6 5 3 1 2 4 8 7 KEYED NOTES:
