Air Handling Unit Base and Mounting Details

Materials

Concrete Steel

Elements

Floors / Slabs

Connections

Bolted Connection

About this detail

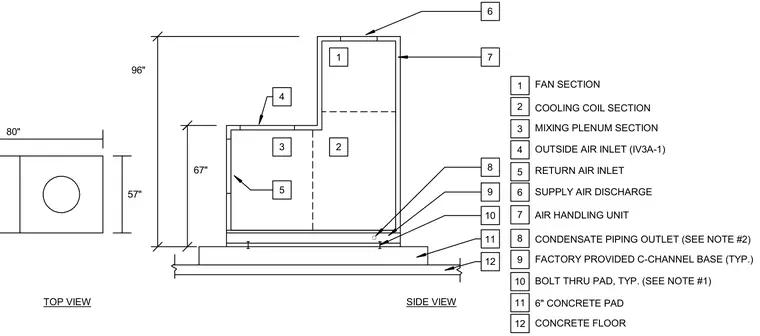

An air handling unit sits on a six-inch concrete pad supported by a concrete floor, secured with bolts through the pad typical. The unit features a factory-provided C-channel base, a condensate piping outlet, a return air inlet, an outside air inlet, a mixing plenum section, a cooling coil section, a fan section, and a supply air discharge.
