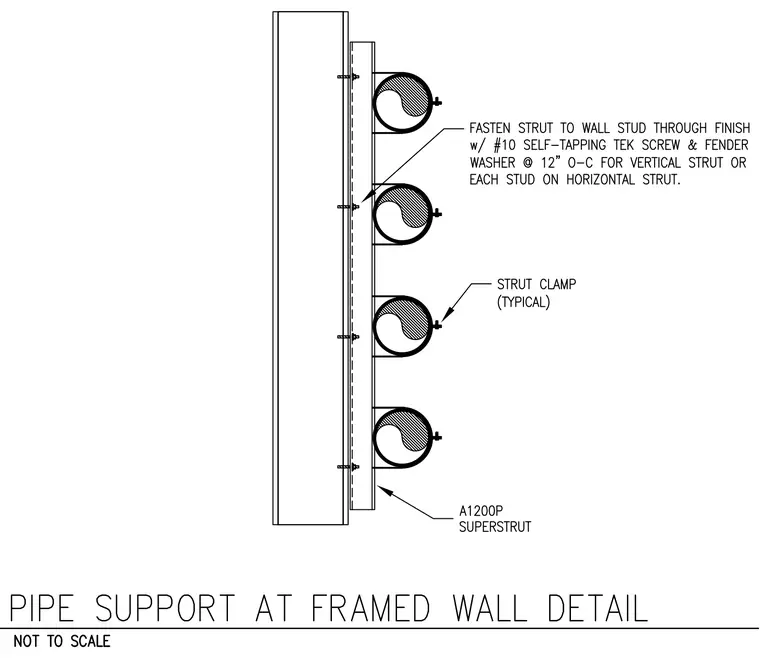

Pipes are secured using standard strut clamps attached to an A1200P Superstrut channel. The Superstrut is fastened to the wall stud through the finish using number 10 self-tapping tek screws and fender washers spaced at 12 inches on-center for vertical struts or at each stud on horizontal struts.
