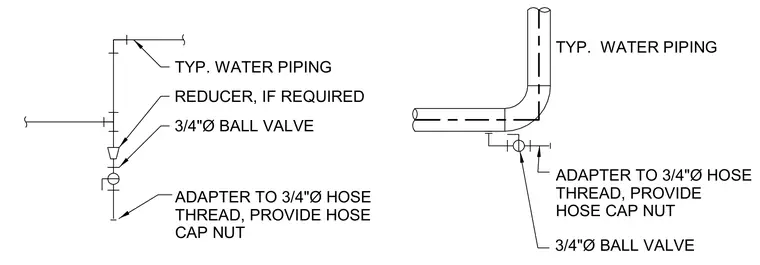

Typical low point drain installation connected to typical water piping. The assembly includes a reducer if required, a three-quarter-inch diameter ball valve, and an adapter to a three-quarter-inch hose thread equipped with a hose cap nut.
TYP. WATER PIPING TYP. WATER PIPING 3/4"Ø BALL VALVE REDUCER, IF REQUIRED ADAPTER TO 3/4"Ø HOSE THREAD, PROVIDE HOSE CAP NUT 3/4"Ø BALL VALVE ADAPTER TO 3/4"Ø HOSE THREAD, PROVIDE HOSE CAP NUT
