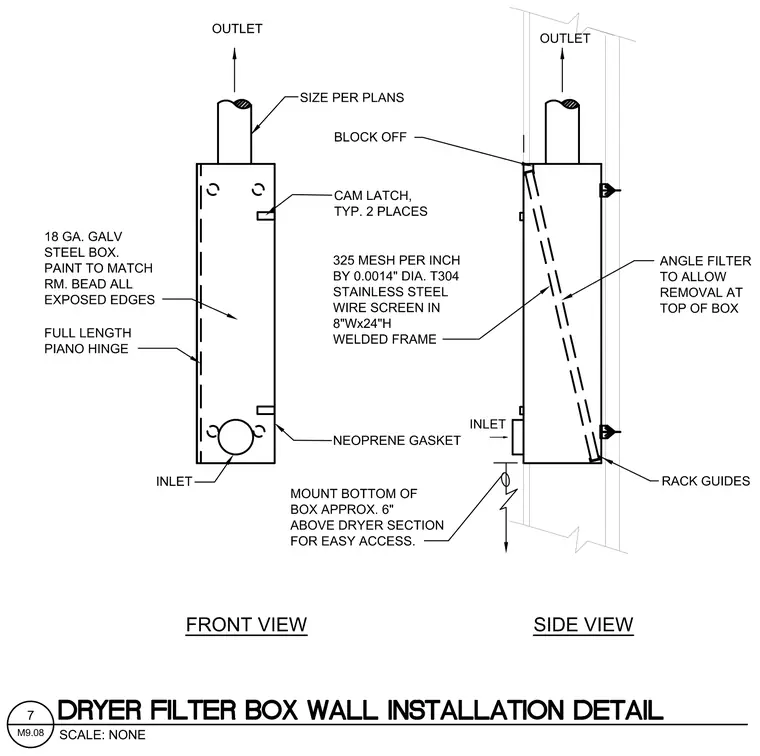

An eighteen-gauge galvanized steel box is painted to match with room bead applied to all exposed edges, featuring a full-length piano hinge and two cam latches. Inside the enclosure, a welded frame holds a three-hundred-twenty-five mesh per inch by zero-point-zero-zero-one-four-inch diameter type three hundred four stainless steel wire screen measuring eight inches wide by twenty-four inches high. The filter is angled inside the box on rack guides to allow removal at the top of the box, with a block off located at the upper edge. A neoprene gasket seals the assembly, and the bottom of the box is mounted approximately six inches above the dryer section for easy access. The inlet and outlet ductwork sizes are determined per plans.
