Typical Duct Support

Materials

Elements

About this detail

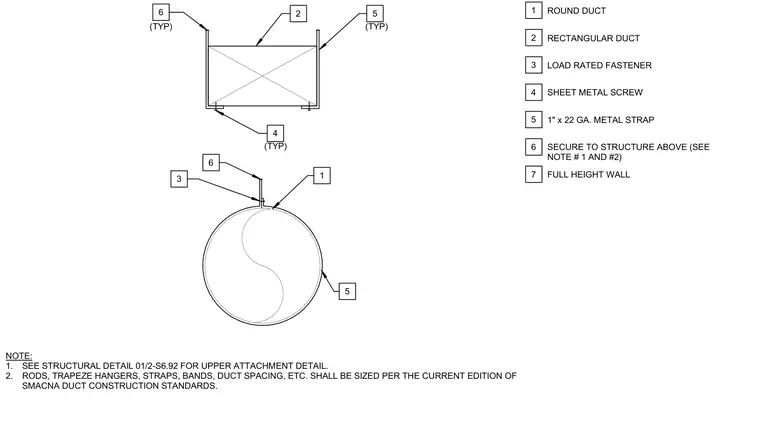

Rectangular and round HVAC ducts are supported using one-inch by twenty-two gauge metal straps secured with sheet metal screws and load-rated fasteners. The support straps wrap around the ductwork and anchor back to the overhead structure. Upper attachments follow structural detail requirements, while sizing and spacing comply with current SMACNA standards.
