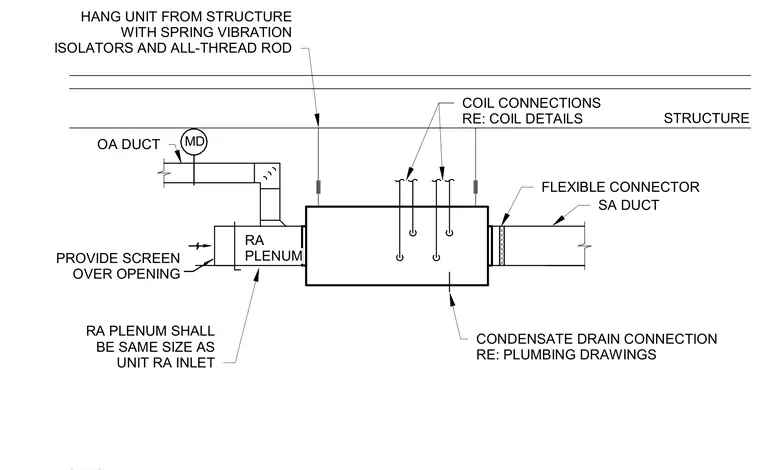

A horizontal HVAC unit is suspended from the overhead building structure using spring vibration isolators and threaded rod hangers. The supply air duct connects to the unit discharge via a flexible connector, while outside air and return air plenums tie into the inlet side with an access screen over the opening. Coil connections and condensate drain connections are routed per mechanical and plumbing requirements.
STRUCTURE HANG UNIT FROM STRUCTURE WITH SPRING VIBRATION ISOLATORS AND ALL-THREAD ROD CONDENSATE DRAIN CONNECTION RE: PLUMBING DRAWINGS SA DUCT FLEXIBLE CONNECTOR OA DUCT MD COIL CONNECTIONS RE: COIL DETAILS PROVIDE SCREEN OVER OPENING RA PLENUM RA PLENUM SHALL BE SAME SIZE AS UNIT RA INLET
