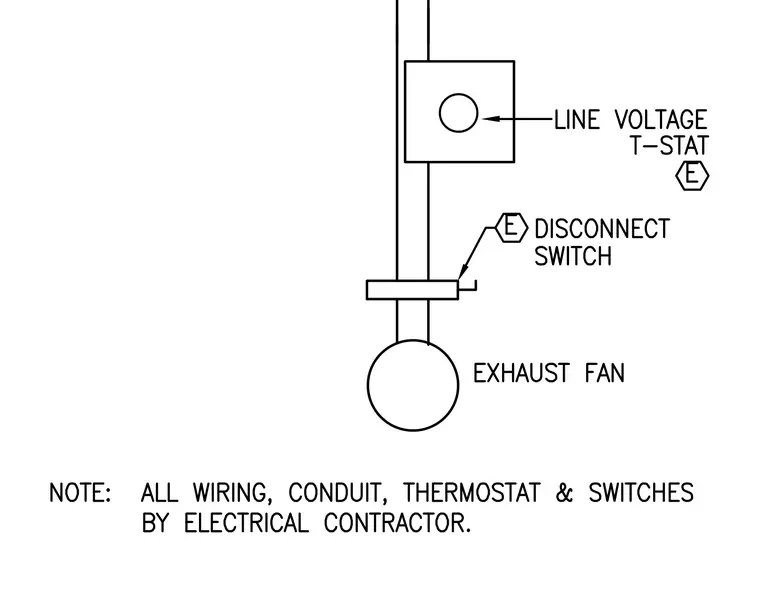

A line voltage thermostat connects directly to the power feed and controls an exhaust fan. A disconnect switch is installed in the conduit run between the thermostat and the exhaust fan. All wiring, conduit, thermostat, and switches are provided and installed by the electrical contractor.
