Mechanical · M-35BN4

Rooftop Pipe Support Sleeper Detail

Materials

Elements

About this detail

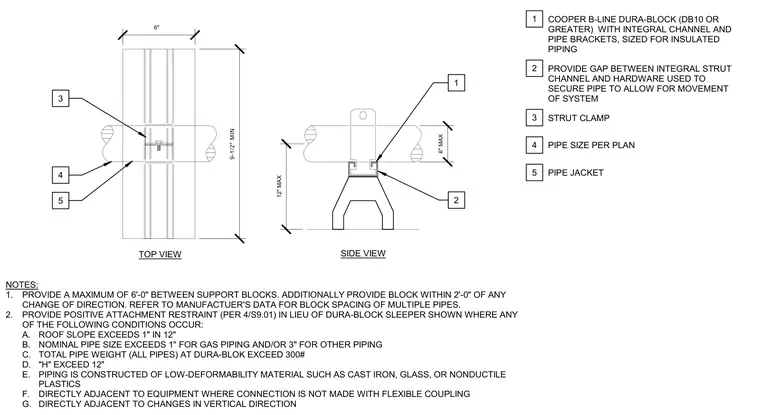

A rooftop pipe support assembly using a Cooper B-Line Dura-Block (DB10 or greater) equipped with an integral strut channel and pipe brackets sized for insulated piping. A strut clamp secures the pipe, maintaining a required gap between the integral strut channel and the hardware to allow for system movement. Support blocks are spaced at a maximum of six feet on center, with an additional block required within two feet of any change in direction. Positive attachment restraints are mandated under specific conditions such as roof slopes exceeding one inch in twelve inches, gas pipe sizes over one inch, or total pipe weights exceeding 300 pounds.
