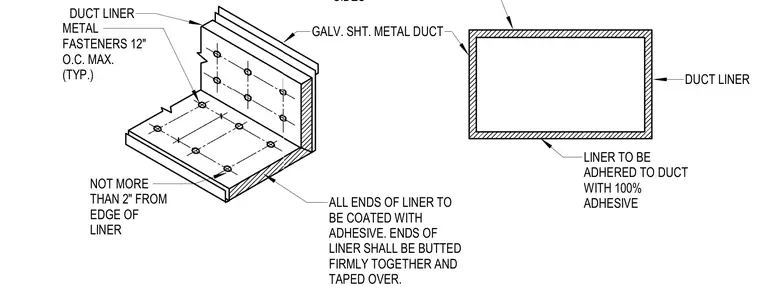

A galvanized sheet metal duct interior lined with duct liner adhered using one hundred percent adhesive coverage across all surfaces. Mechanical fasteners are spaced at twelve inches on center maximum typically, placed not more than two inches from the edge of the liner. All ends of the liner are coated with adhesive, butted firmly together, and taped over at the joints.
METAL FASTENERS 12" O.C. MAX. (TYP.) DUCT LINER SIDES DUCT LINER LINER TO BE ADHERED TO DUCT WITH 100% ADHESIVE ALL ENDS OF LINER TO BE COATED WITH ADHESIVE. ENDS OF LINER SHALL BE BUTTED FIRMLY TOGETHER AND TAPED OVER. NOT MORE THAN 2" FROM EDGE OF LINER GALV. SHT. METAL DUCT
