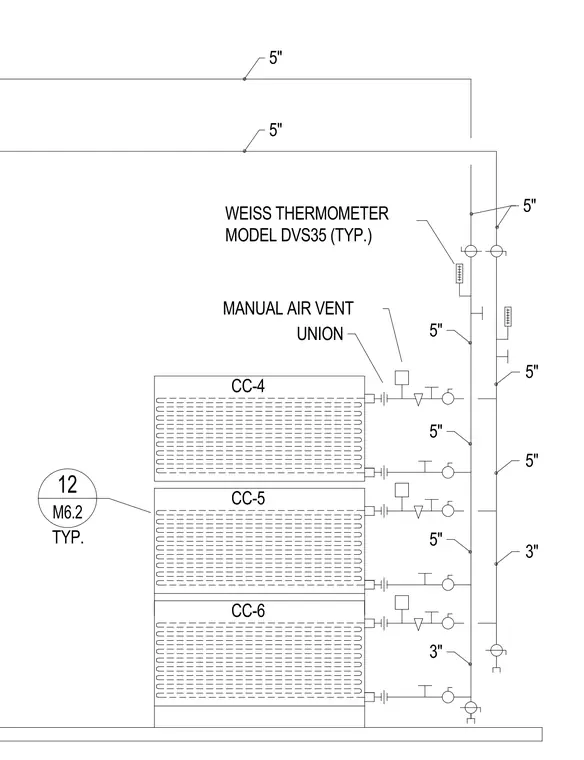

This mechanical drawing details the piping connections for equipment coils CC-4, CC-5, and CC-6 served by five-inch and three-inch piping risers. Each coil connection incorporates a union and a manual air vent, with Weiss thermometer Model DVS35 installed typically along the system. Valves and fittings are integrated into the feed and return lines with specific pipe sizing calls throughout the assembly.
CC-5 5" CC-4 WEISS THERMOMETER MODEL DVS35 (TYP.) 5" 5" MANUAL AIR VENT UNION TYP. 12 M6.2 CC-6 3" 5" 5" 3" 5" 5" 5"
