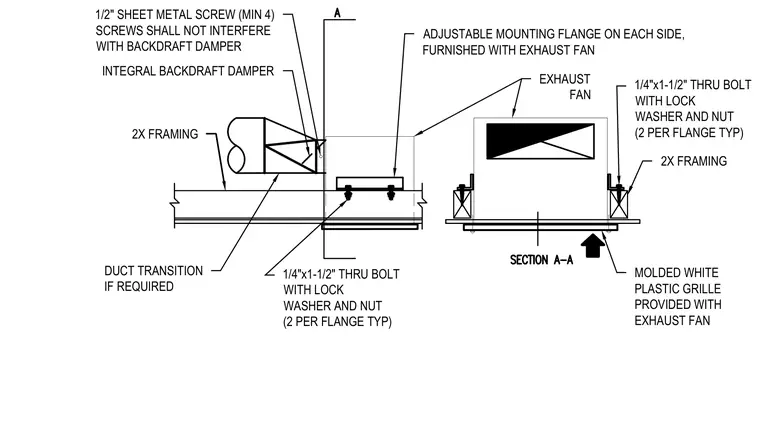

An exhaust fan unit is secured to wood framing using an adjustable mounting flange on each side fastened with one-quarter by one-and-one-half-inch through bolts, lock washers, and nuts at a rate of two per flange. A molded white plastic grille is provided with the exhaust fan at the ceiling line. An integral backdraft damper connects to the duct transition via a minimum of four one-half-inch sheet metal screws positioned to avoid interfering with the damper operation.
DUCT TRANSITION IF REQUIRED INTEGRAL BACKDRAFT DAMPER 2X FRAMING 1/2" SHEET METAL SCREW (MIN 4) SCREWS SHALL NOT INTERFERE WITH BACKDRAFT DAMPER EXHAUST FAN ADJUSTABLE MOUNTING FLANGE ON EACH SIDE, FURNISHED WITH EXHAUST FAN 1/4"x1-1/2" THRU BOLT WITH LOCK WASHER AND NUT (2 PER FLANGE TYP) 1/4"x1-1/2" THRU BOLT WITH LOCK WASHER AND NUT (2 PER FLANGE TYP) 2X FRAMING MOLDED WHITE PLASTIC GRILLE PROVIDED WITH EXHAUST FAN
