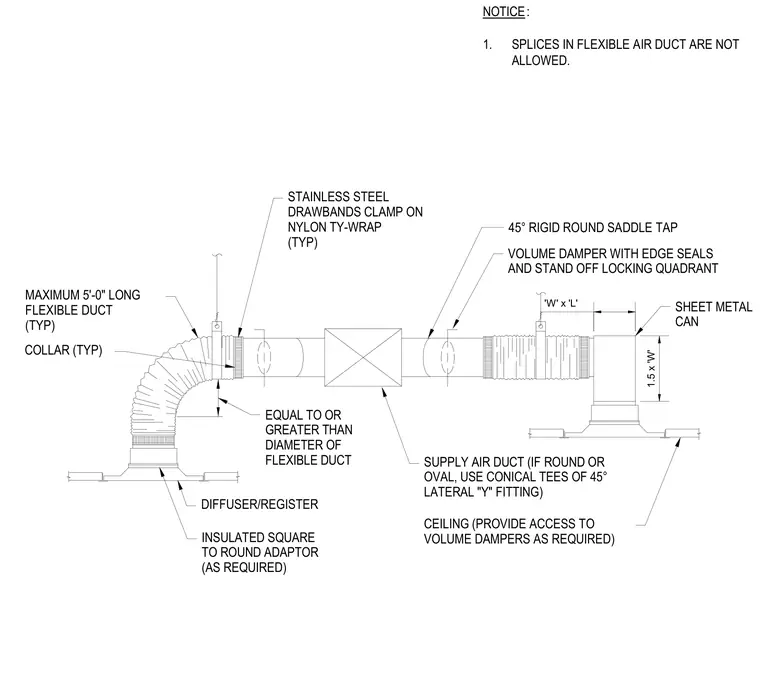

Flexible air duct connects the main supply air duct to a ceiling-mounted diffuser or register through an insulated square-to-round adaptor and collar. Stainless steel drawbands and nylon tie-wraps secure the flexible duct, which is limited to a maximum length of five feet without splices. A forty-five degree rigid round saddle tap branches from the main supply duct, incorporating a volume damper equipped with edge seals and a standoff locking quadrant. The sheet metal can transitions into the diffuser assembly set within the ceiling, requiring accessible volume dampers.
NOTICE: 1. SPLICES IN FLEXIBLE AIR DUCT ARE NOT ALLOWED. 1.5 x 'W' 'W' x 'L' EQUAL TO OR GREATER THAN DIAMETER OF FLEXIBLE DUCT STAINLESS STEEL DRAWBANDS CLAMP ON NYLON TY-WRAP (TYP) MAXIMUM 5'-0" LONG FLEXIBLE DUCT (TYP) INSULATED SQUARE TO ROUND ADAPTOR (AS REQUIRED) COLLAR (TYP) DIFFUSER/REGISTER 45° RIGID ROUND SADDLE TAP VOLUME DAMPER WITH EDGE SEALS AND STAND OFF LOCKING QUADRANT SHEET METAL CAN SUPPLY AIR DUCT (IF ROUND OR OVAL, USE CONICAL TEES OF 45° LATERAL "Y" FITTING) CEILING (PROVIDE ACCESS TO VOLUME DAMPERS AS REQUIRED)
