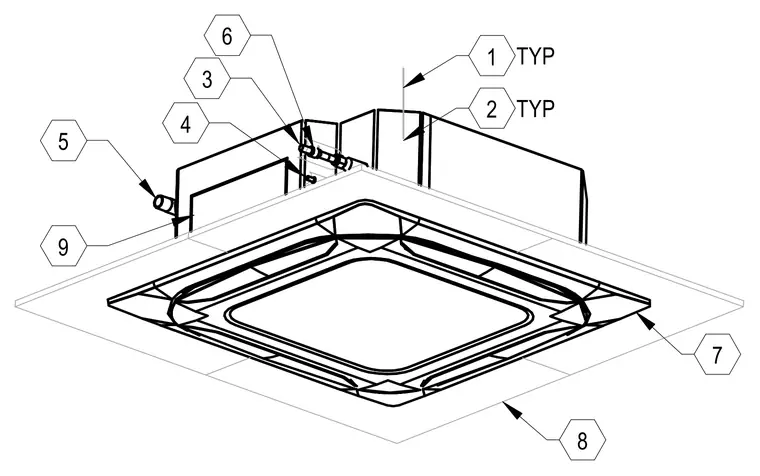

A variable refrigerant flow ceiling cassette unit is installed flush within a suspended ceiling grid system. Refrigerant piping connects to the unit body via insulated stub-outs and threaded fittings. Support hangers secure the cassette housing to the overhead structural framing.
