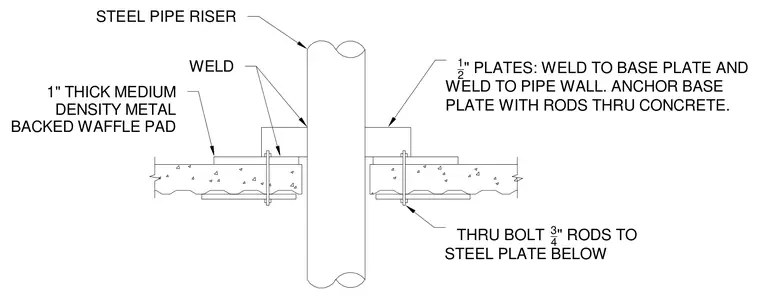

A steel pipe riser passes through a concrete floor slab and is supported by a base plate welded to the pipe wall with half-inch stiffener plates. A one-inch thick medium-density metal-backed waffle pad sits beneath the base plate for vibration isolation. Three-quarter-inch through rods anchor the base plate through the concrete to a steel plate below.
WELD 1_ 2 " PLATES: WELD TO BASE PLATE AND WELD TO PIPE WALL. ANCHOR BASE PLATE WITH RODS THRU CONCRETE. 1" THICK MEDIUM DENSITY METAL BACKED WAFFLE PAD THRU BOLT 3_ 4 " RODS TO STEEL PLATE BELOW STEEL PIPE RISER
