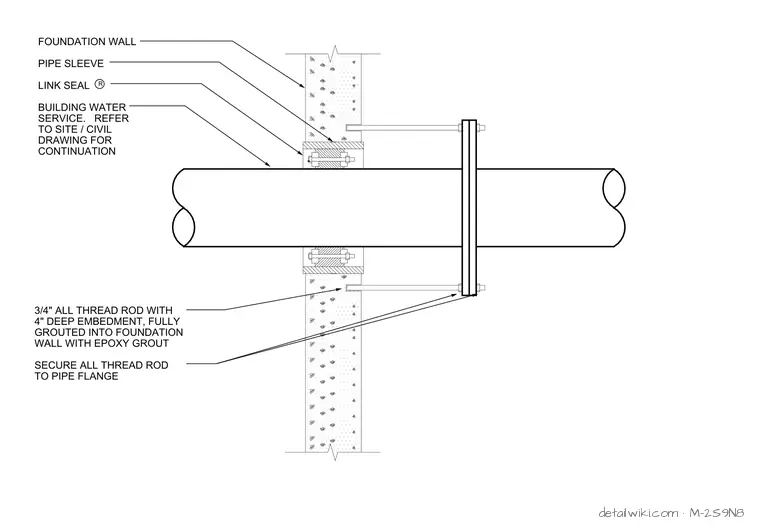

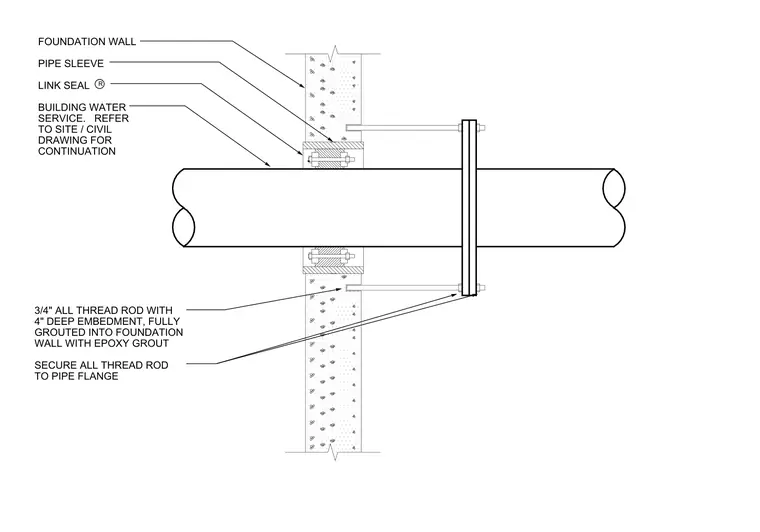

M-2S9N8 — Foundation Wall Pipe Penetration Detail

Mechanical · M-2S9N8

Foundation Wall Pipe Penetration Detail

Units: imperial
Sheet: M302
Discipline: Mechanical

Materials

Concrete Masonry / CMU Steel

Elements

Anchors / Embeds Foundations / Footings Roof / Floor Openings Walls Waterproofing / Flashing

Connections

Base Plate / Anchorage Embed Plate

Text on the drawing

R 3/4" ALL THREAD ROD WITH 4" DEEP EMBEDMENT, FULLY GROUTED INTO FOUNDATION WALL WITH EPOXY GROUT SECURE ALL THREAD ROD TO PIPE FLANGE FOUNDATION WALL PIPE SLEEVE LINK SEAL BUILDING WATER SERVICE. REFER TO SITE / CIVIL DRAWING FOR CONTINUATION

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
