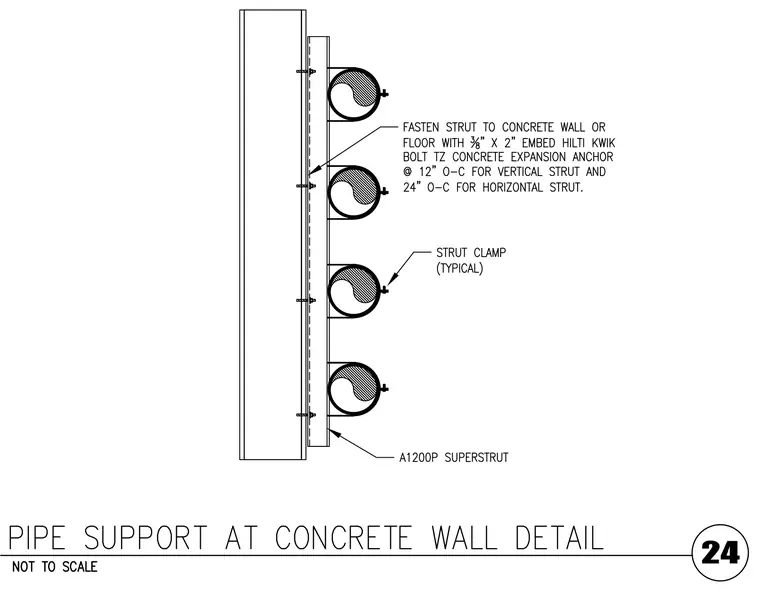

An A1200P superstrut mounts directly to a concrete wall or floor using three-eighths-inch by two-inch embedment Hilti Kwik Bolt TZ concrete expansion anchors spaced at twelve inches on center for vertical struts and twenty-four inches on center for horizontal struts. Pipes are retained against the strut channel using typical strut clamps.
