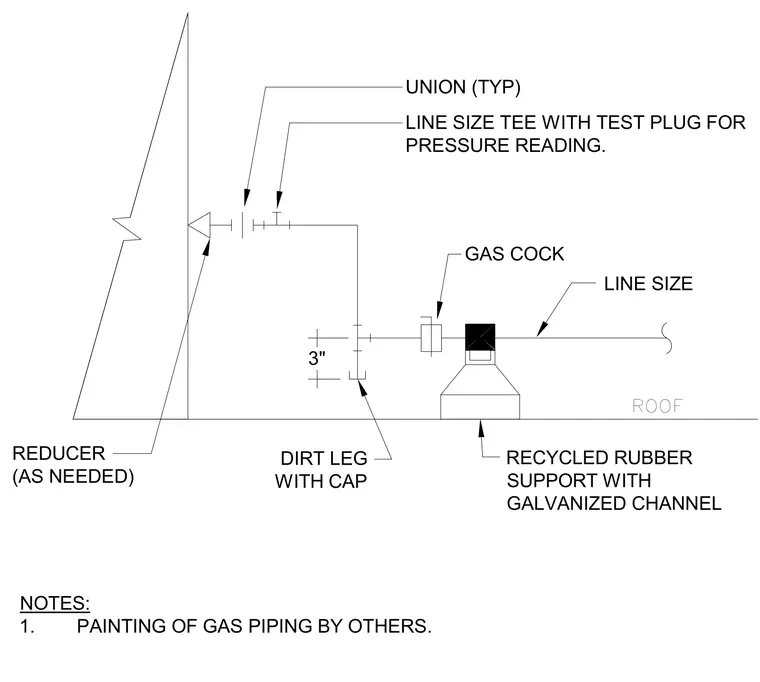

Rooftop gas piping is supported by a recycled rubber support equipped with a galvanized channel. The line size gas pipe incorporates a gas cock valve, a line size tee with a test plug for pressure readings, a typical union fitting, and a three-inch dirt leg with a cap. A reducer is included as needed near the building penetration or transition. Painting of the gas piping is performed by others per note requirements.
NOTES: 1. PAINTING OF GAS PIPING BY OTHERS. GAS COCK LINE SIZE TEE WITH TEST PLUG FOR PRESSURE READING. UNION (TYP) RECYCLED RUBBER SUPPORT WITH GALVANIZED CHANNEL DIRT LEG WITH CAP ROOF 3" REDUCER (AS NEEDED) LINE SIZE
