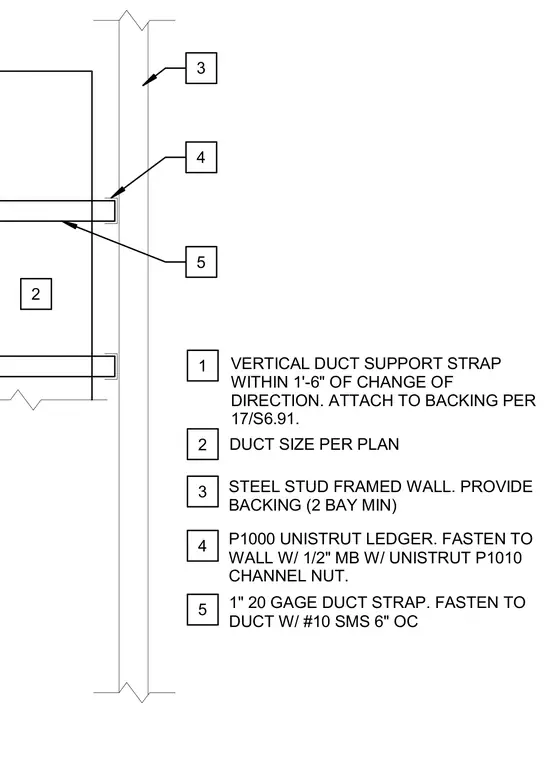

A vertical duct support strap secures the ductwork within one foot six inches of a change of direction, attached to wall backing spanning a minimum of two bays. The support utilizes a P1000 Unistrut ledger fastened to the steel stud framed wall with one-half-inch machine bolts and Unistrut P1010 channel nuts. A one-inch twenty-gauge duct strap wraps the duct and fastens with number ten sheet metal screws spaced six inches on center.
VERTICAL DUCT SUPPORT STRAP WITHIN 1'-6" OF CHANGE OF DIRECTION. ATTACH TO BACKING PER 17/S6.91. DUCT SIZE PER PLAN STEEL STUD FRAMED WALL. PROVIDE BACKING (2 BAY MIN) P1000 UNISTRUT LEDGER. FASTEN TO WALL W/ 1/2" MB W/ UNISTRUT P1010 CHANNEL NUT. 1 2 3 4 4 5 1" 20 GAGE DUCT STRAP. FASTEN TO DUCT W/ #10 SMS 6" OC 3 5 2
