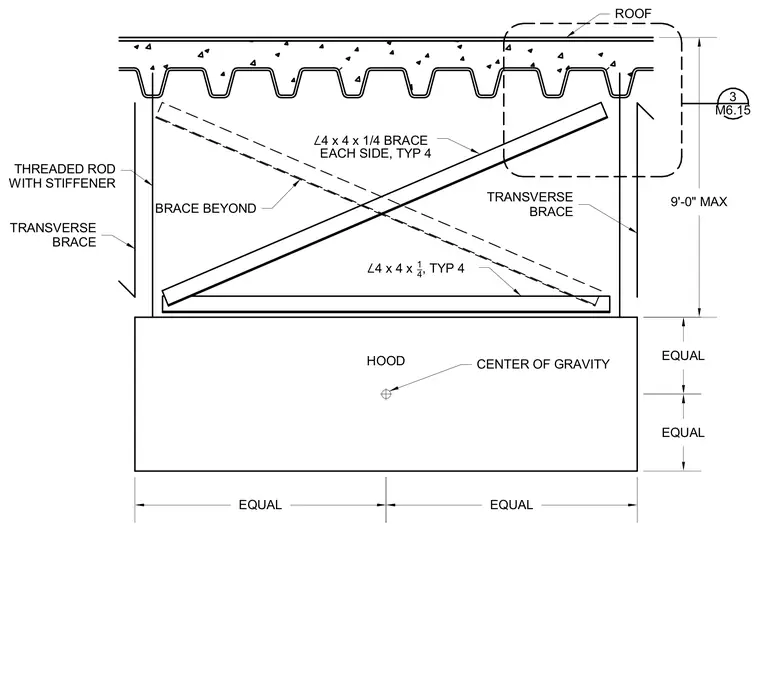

The hood is suspended below a profiled metal deck roof slab using four threaded rods with stiffeners, maintaining a maximum drop of nine feet. Four 4x4x1/4-inch structural angles serve as diagonal braces on each side to provide lateral stability. Transverse braces further secure the assembly, while equal spacing and center of gravity markers position the hood load properly.
ROOF ∠ 4 x 4 x 1/4 BRACE EACH SIDE, TYP 4 THREADED ROD WITH STIFFENER 9'-0" MAX HOOD 3 M6.15 EQUAL CENTER OF GRAVITY EQUAL EQUAL EQUAL ∠ 4 x 4 x 1_ 4 , TYP 4 BRACE BEYOND TRANSVERSE BRACE TRANSVERSE BRACE
