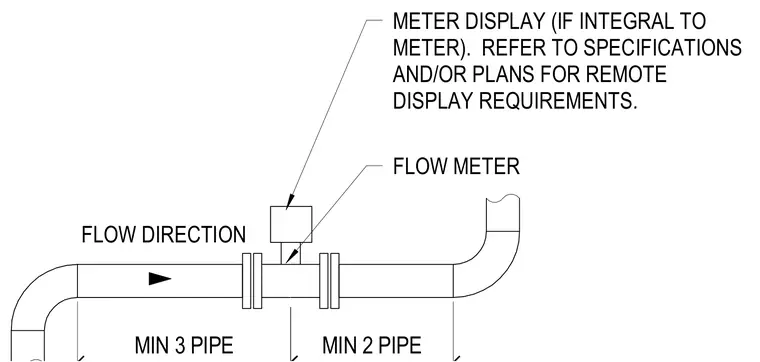

Inline flow meter installation detailing straight pipe length requirements and component orientation within mechanical piping. The layout requires a minimum of three pipe diameters of straight run upstream of the meter and a minimum of two pipe diameters downstream. Flow direction arrows indicate the correct orientation through the flanged flow meter assembly. The meter display is mounted integrally to the meter or routed to a remote display per project specifications and plans.
MIN 2 PIPE MIN 3 PIPE FLOW DIRECTION FLOW METER METER DISPLAY (IF INTEGRAL TO METER). REFER TO SPECIFICATIONS AND/OR PLANS FOR REMOTE DISPLAY REQUIREMENTS.
