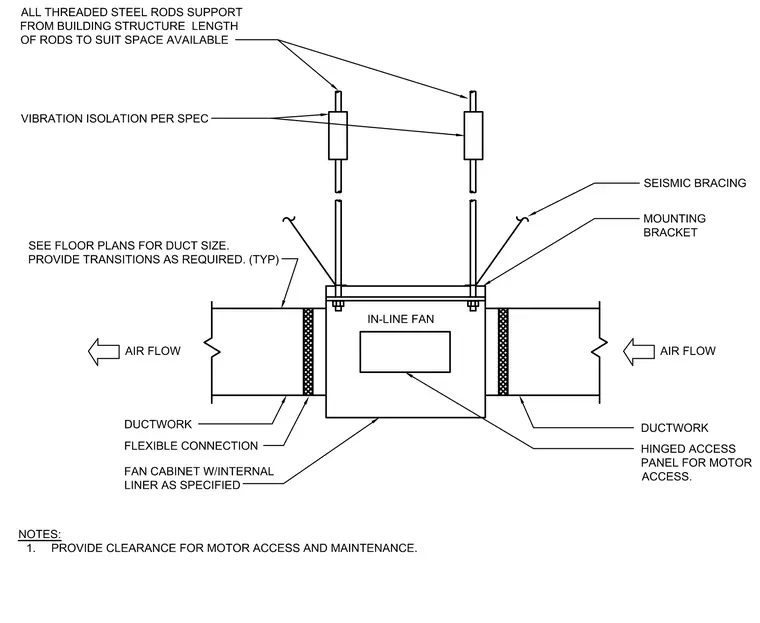

An in-line centrifugal fan cabinet with an internal liner and a hinged access panel for motor maintenance is hung from the building structure using threaded steel rods. Vibration isolators are incorporated into the suspension rods, and seismic bracing is provided for lateral stability. Flexible duct connections link the fan cabinet to the adjacent ductwork on both the intake and discharge sides to isolate vibration and sound. Clearances around the unit are maintained to ensure proper motor access.
NOTES: 1. PROVIDE CLEARANCE FOR MOTOR ACCESS AND MAINTENANCE. ALL THREADED STEEL RODS SUPPORT FROM BUILDING STRUCTURE LENGTH OF RODS TO SUIT SPACE AVAILABLE VIBRATION ISOLATION PER SPEC SEE FLOOR PLANS FOR DUCT SIZE. PROVIDE TRANSITIONS AS REQUIRED. (TYP) SEISMIC BRACING MOUNTING BRACKET AIR FLOW DUCTWORK HINGED ACCESS PANEL FOR MOTOR ACCESS. FAN CABINET W/INTERNAL LINER AS SPECIFIED FLEXIBLE CONNECTION DUCTWORK AIR FLOW IN-LINE FAN
