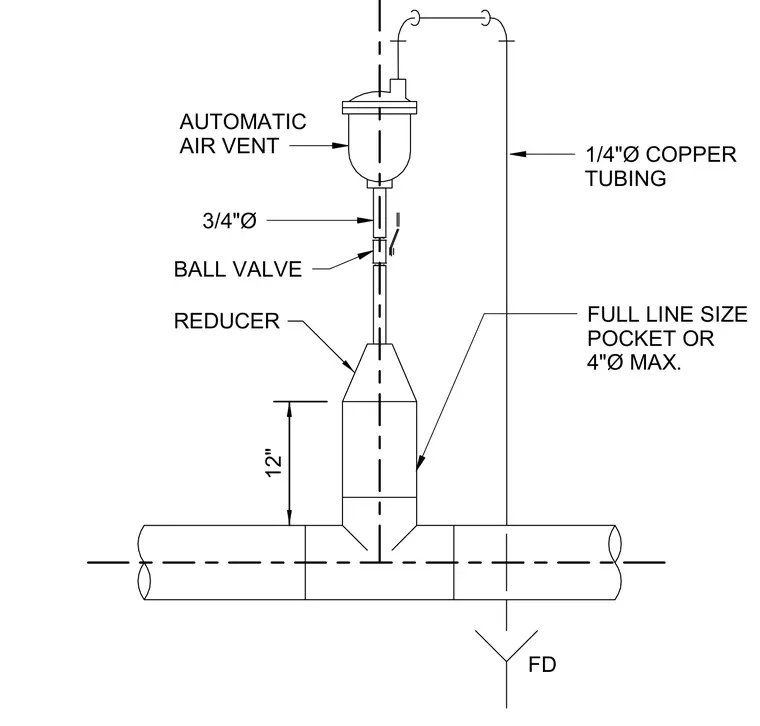

An automatic air vent connects to the main piping run using a three-quarter-inch connection fitted with a ball valve for isolation. A reducer transitions the connection into a full line size pocket or a four-inch maximum diameter riser. A one-quarter-inch copper tubing line extends from the top of the vent down to a floor drain for discharge.
12" FD 3/4"Ø AUTOMATIC AIR VENT REDUCER FULL LINE SIZE POCKET OR 4"Ø MAX. 1/4"Ø COPPER TUBING BALL VALVE
