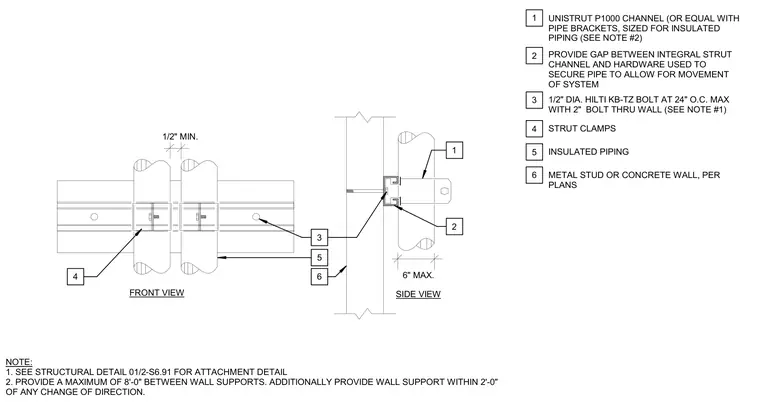

Insulated piping is supported along a metal stud or concrete wall using a continuous Unistrut P1000 channel secured with one-half inch diameter Hilti KB-TZ expansion bolts spaced at twenty-four inches on center maximum. Strut clamps secure the piping to the channel, maintaining a gap between the integral channel and mounting hardware to allow for thermal movement of the piping system. Wall supports are spaced at a maximum of eight feet on center with additional support provided within two feet of any change in pipe direction.
1 3 2 PROVIDE GAP BETWEEN INTEGRAL STRUT CHANNEL AND HARDWARE USED TO SECURE PIPE TO ALLOW FOR MOVEMENT OF SYSTEM 4 UNISTRUT P1000 CHANNEL (OR EQUAL WITH PIPE BRACKETS, SIZED FOR INSULATED PIPING (SEE NOTE #2) 1/2" DIA. HILTI KB-TZ BOLT AT 24" O.C. MAX WITH 2" BOLT THRU WALL (SEE NOTE #1) STRUT CLAMPS 6" MAX. SIDE VIEW 1 2 3 FRONT VIEW 4 5 5 INSULATED PIPING NOTE: 1. SEE STRUCTURAL DETAIL 01/2-S6.91 FOR ATTACHMENT DETAIL 2. PROVIDE A MAXIMUM OF 8'-0" BETWEEN WALL SUPPORTS. ADDITIONALLY PROVIDE WALL SUPPORT WITHIN 2'-0" OF ANY CHANGE OF DIRECTION. 6 6 METAL STUD OR CONCRETE WALL, PER PLANS 1/2" MIN.
