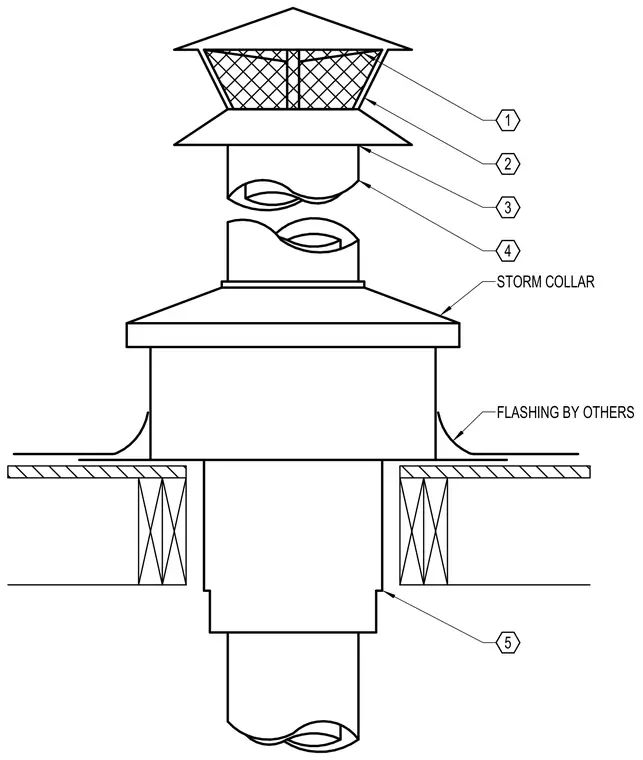

A roof penetration assembly includes a vertical pipe passing through a roof deck and framing, protected by a storm collar and flashing provided by others. The top of the pipe terminates with a rain cap and screen assembly.
