Mechanical · M-28Z3M

Volume Pump with VFD Piping Detail

Materials

Steel

Elements

Floors / Slabs Bracing Drainage Connections / Plates

Connections

Welded Connection Bolted Connection

About this detail

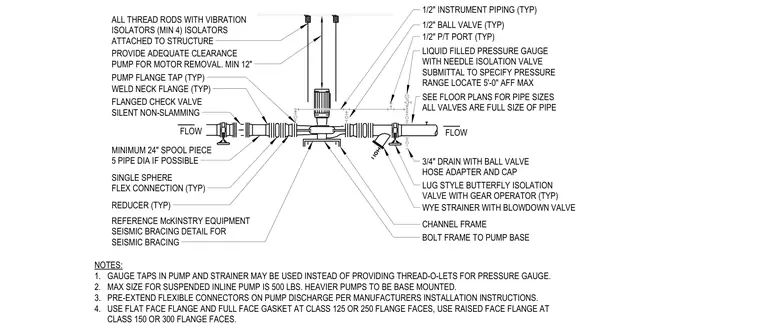

This mechanical detail shows an inline volume pump assembly equipped with a variable frequency drive, suspended from the structure using a channel frame, pump base bolts, and a minimum of four all-thread rods with vibration isolators. The piping configuration incorporates weld neck flanges, pump flange taps, single-sphere flexible connections, reducers, and a minimum twenty-four-inch spool piece or five pipe diameters upstream. Flow control and maintenance components include a silent non-slamming flanged check valve, lug-style butterfly isolation valves with gear operators, a wye strainer with a blowdown valve, and a three-quarter-inch drain with a ball valve, hose adapter, and cap. Instrumentation includes half-inch P/T ports, half-inch ball valves, half-inch instrument piping, and liquid-filled pressure gauges with needle isolation valves located at a maximum of five feet above finished floor. Gauge taps in the pump and strainer are permitted in lieu of thread-o-lets for pressure gauges. Suspended inline pumps are limited to a maximum size of five hundred pounds, with heavier units requiring base mounting.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
