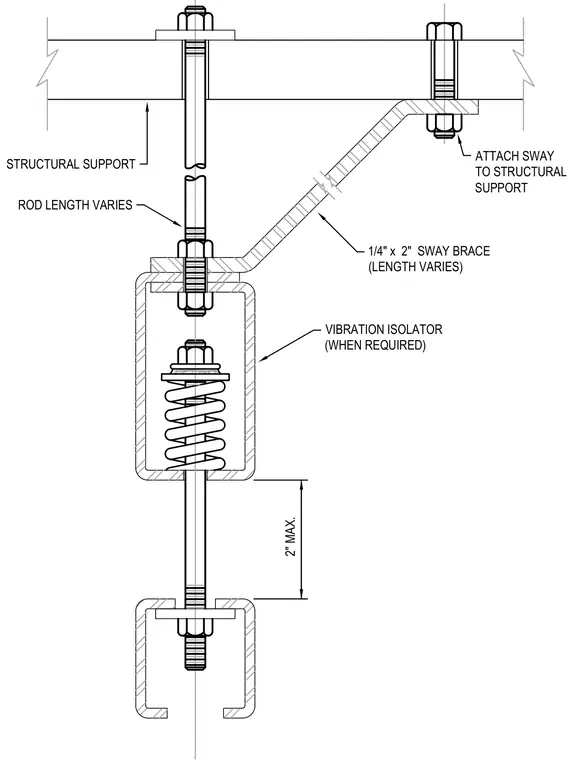

A structural support member anchors a vertical hanger rod and an angled sway brace. A vibration isolator with an internal spring is integrated into the hanger assembly. The sway brace consists of a one-quarter-inch by two-inch flat bar of variable length secured directly to the overhead support.
2" MAX. STRUCTURAL SUPPORT ROD LENGTH VARIES 1/4" x 2" SWAY BRACE (LENGTH VARIES) ATTACH SWAY TO STRUCTURAL SUPPORT VIBRATION ISOLATOR (WHEN REQUIRED)
