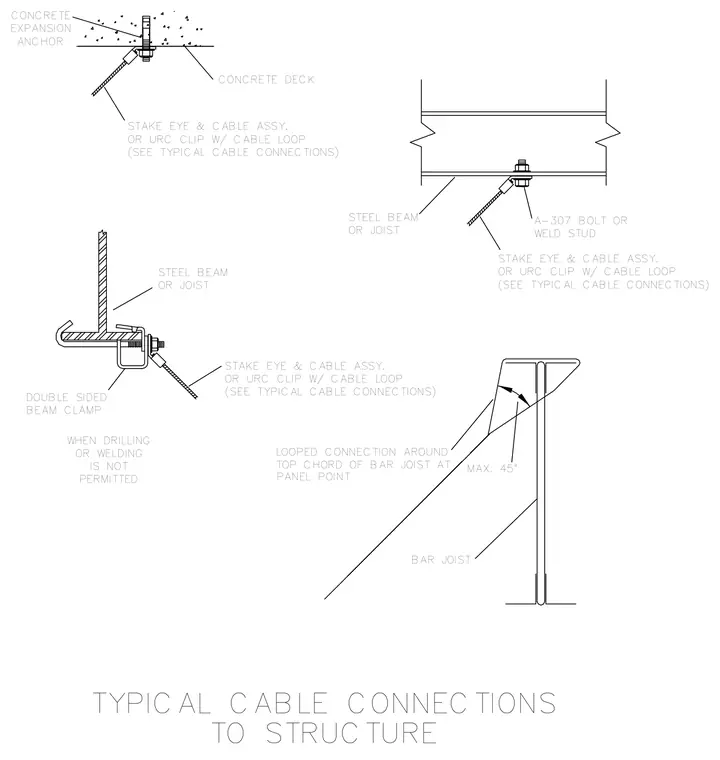

These details show various cable brace attachments to structural supports, including concrete decks, steel beams, and bar joists. Concrete deck attachments utilize a concrete expansion anchor securing a stake eye and cable assembly or URC clip with a cable loop. Steel beam or joist connections employ an A-307 bolt or weld stud, or alternatively a double-sided beam clamp for conditions where drilling or welding is prohibited. Bar joist attachments feature a looped connection around the top chord at a panel point, maintained at a maximum angle of 45 degrees.
MAX. 45° TYPICAL CABLE CONNECTIONS BEAM CLAMP DOUBLE SIDED WHEN DRILLING OR WELDING PERMITTED TO STRUCTURE (SEE TYPICAL CABLE CONNECTIONS) OR URC CLIP W/ CABLE LOOP STAKE EYE & CABLE ASSY. PANEL POINT LOOPED CONNECTION AROUND TOP CHORD OF BAR JOIST AT IS NOT BAR JOIST EXPANSION ANCHOR CONCRETE (SEE TYPICAL CABLE CONNECTIONS) OR URC CLIP W/ CABLE LOOP STAKE EYE & CABLE ASSY. CONCRETE DECK STEEL BEAM OR JOIST STEEL BEAM OR JOIST (SEE TYPICAL CABLE CONNECTIONS) OR URC CLIP W/ CABLE LOOP STAKE EYE & CABLE ASSY. A-307 BOLT OR WELD STUD
